Video inspection unit

This compact video inspection unit is ideal for visual checks in narrow or hidden areas such as pipes, cavities, or vehicle components. Thanks to its integrated front and side cameras with split-screen view, you always keep full control. The compare image function allows side-by-side display of live and reference images – perfect for error diagnosis and condition evaluation.

The camera is dust- and waterproof (IP67) and equipped with seven powerful LEDs, with brightness adjustable in ten levels. The digital zoom and image rotation/mirroring features offer flexible viewing. Photos and videos can be saved internally or via microSD. Practical attachments like a magnet and hook make the system highly versatile – no additional tools required.

Technical data:

• Camera diameter: approx. 5.5 mm
• Camera resolution: 1280 × 720 pixels (HD)
• Field of view: approx. 68°

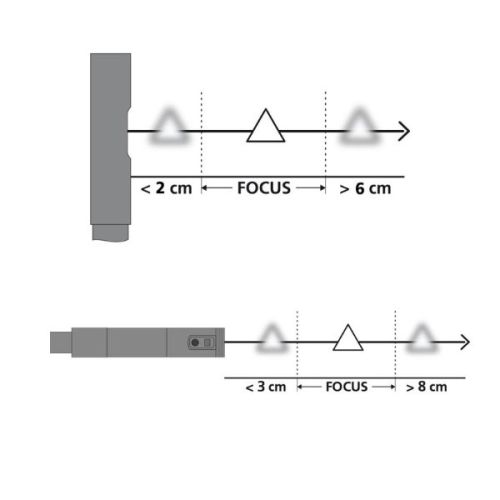

• Focus range: front 3–8 cm, side 2–6 cm
• Display: 4.3″ TFT color display (480 × 272 pixels)
• Zoom: digital, 2× in 25% steps
• Lighting: 7 LEDs, brightness adjustable in 10 levels
• Storage: internal (approx. 100 images) + microSD card slot

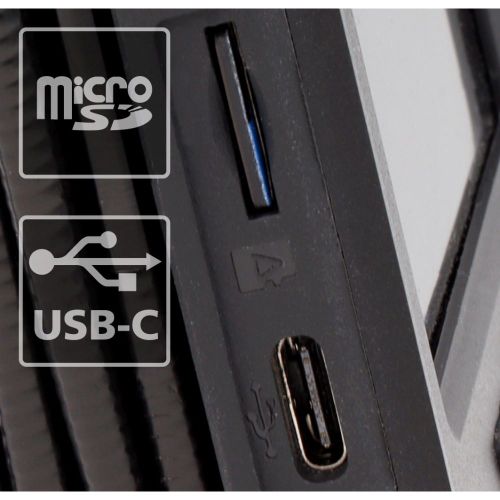

• Connections: USB-C, microSD
• Sonde cable length: approx. 1 m
• Power supply: 4 × AA batteries (LR6)
• Weight: approx. 420 g (including batteries)
• Dimensions: approx. 85 × 153 × 45 mm
• Camera protection: IP67

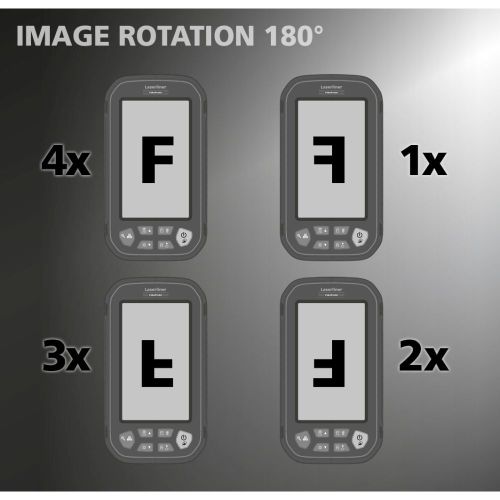

• Functions: split screen, compare image, mirror & rotation mode

Scope of delivery:

• Inspection unit with front/side camera
• microSD card
• 4 × AA batteries
• Carrying case
