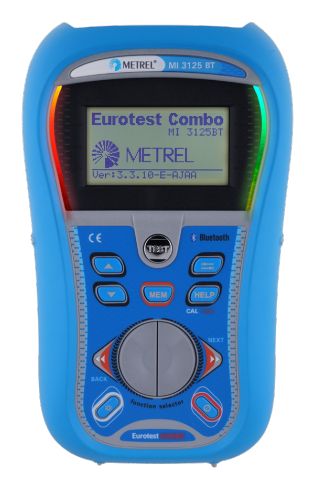

Eurotest Combo mit Bluetooth

METREL MI 3125B

• For tests in accordance with IEC 60364-6: 2006 (DIN VDE 0100-600 (VDE 0100-600): 2008-06)

Measuring functions

• Voltage, frequency and phase order
• Insulation resistance 50/100/250/500/1000 VDC
• Resistance measurement PE (200 mA)
• Testing of RCDs type AC, A, B
• Test current type adjustable
• Fault loop impedance (leakage current)
• Conductor impedance (short-circuit current)
• Earth resistance
• Languages: de, en, fr, nl, es, dk, no, sv, sl, hu, ru
• Help feature: Display of connection diagrams
• Battery: 6 x AA, 2100 mAh
• Interface: USB + RS232
• Memory: 1700 results
• Dimensions: 140 × 80 × 230 mm
• Weight: 1.0 kg
• Standards: IEC/EN 61557-2, -3, -4, -5, -6
• CAT III 600C, CAT IV 300V
• Accessories:1 x Case
• 1 x Universal measuring instructions
• 3 x Test clamps
• 3 x Measuring probes
• 1 x USB cable
• 1 x RS232 cable
• 1 x Handbook
