Ultraschall-ClampOn Durchflussmesser portable

Our set consists of:

• 1 x Mobile ultrasonic flow meter
• 1 x Pair of ultrasonic transducers 1 MHz

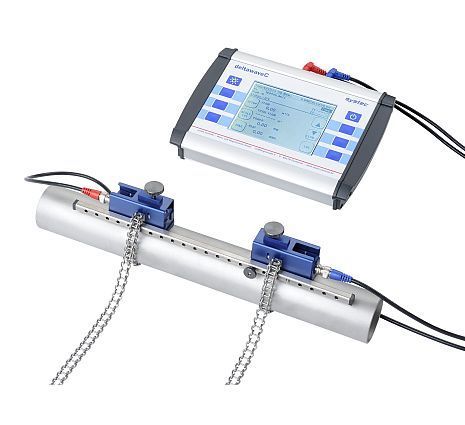

Discover the deltawaveC – the universally applicable mobile ultrasonic flow meter for liquid media in pipelines. Thanks to the highly accurate ultrasonic transit-time method (time-of-flight) and innovative clamp-on technology, there is no need to cut the pipeline, avoiding pressure losses. The sensors are contamination-free and hygienic, making them ideal for food and pharmaceutical products. Furthermore, the deltawaveC measurement process introduces no additional sealing surfaces or dead volumes, making it perfect for toxic or environmentally harmful liquids.

The high-performance ultrasonic transducers are optimized for maximum signal yield and excellent measurement performance. A device suitable for almost all measurement tasks! The ultrasonic transducers are clamped onto the outside of the pipeline and come with practical mounting materials. Installation takes only minutes – there is no need to cut the pipeline.

Your process does not need to be interrupted. Depending on the space and application, the sensors can be attached to your pipeline in Z, V, or W mode.

Technical specifications for the mobile ultrasonic flow meter:

• Measurement principle: Ultrasonic transit-time difference
• Heat quantity measurement: Integrated (optional clamp-on temperature sensors)
• Pipe sizes: DN10 … DN6000
• Installation: Non-invasive clamp-on technology
• Measurement range: -30…30 m/s
• Measured quantities: Flow, velocity, heat power
• Counters: Volume, heat quantity
• Inputs: 2x PT100
• Outputs: 1x Relay, 1×4…20mA
• Data storage: SD card (2 GB)
• Data format: Text, directly importable into standard office applications
• Interfaces: USB
• Power supply: Battery or 230VAC adapter for charging or mains operation
• Media: Liquids
• Medium temperature: -40…150°C
• Protection class: IP40

Technical specifications for the 1 MHz ultrasonic transducer:

• Transducer frequency: 1 MHz
• Pipe sizes: DN32.DN400
• Medium temperature: -40…150°C
• Material: PEEK / Aluminum
• Connection: BNC
• Protection class: IP40

The ultrasonic transit-time flow measurement offers numerous advantages:

• No wear, no moving parts, no drift
• No pressure loss
• Wide measurement range
• Clamp-on or strap-on flow meters
• Ultrasonic meters with wetted transducers
• Flow measurement in full or partially full pipes, open channels, ducts, streams, and rivers
• Flow measurement of liquids, including non-conductive hydrocarbons and gases
• Heat quantity measurement

Scope of delivery:

• 1 x Mobile ultrasonic flow meter
• 1 x Hard-shell carrying case
• 1 x User manual on USB stick
• 1 x Printed quick start guide
• 1 x Analog output cable MiniDIN, crocodile clips 0.5m
• 1 x Relay/pulse output cable MiniDIN, crocodile clips 0.5m
• 1 x USB cable
• 1 x BNC cable
• 2 x Ultrasonic transducers (1 pair)
• 2 x Tension chains (max. DN400)
• 1 x Mounting rail 400mm
• 1 x Tube of acoustic coupling gel
